颜料紫23-Corimax紫罗兰色RLS
Pigment violet 23 is an organic compound that is a commercial pigment. It is member of the dioxazine family of heterocyclic compounds, but derived from carbazoles. It is prepared by condensation of chloranil and 3-amino-N-ethylcarbazole. It has a centrosymmetric angular structure. For many years, the structure was assigned, incorrectly, as having a "linear structure" (EC no. 228-767-9, CAS RN 6358-30-1) which differ in terms of the carbazole ring fusion.
Pigment violet 23 is prepared by condensation of an aniline with chloranil.[From Wiki]
颜料紫23的技术参数
| 颜色索引号 | 颜料紫23 |
| 产品名称 | Corimax紫罗兰色RLS |
| 产品分类 | 有机颜料 |
| 耐光性（涂料） | 7 |
| 耐热性（涂层） | 200 |
| 耐光性（塑料） | 7 |
| 耐热性（塑料） | 250 |
颜色 |  |

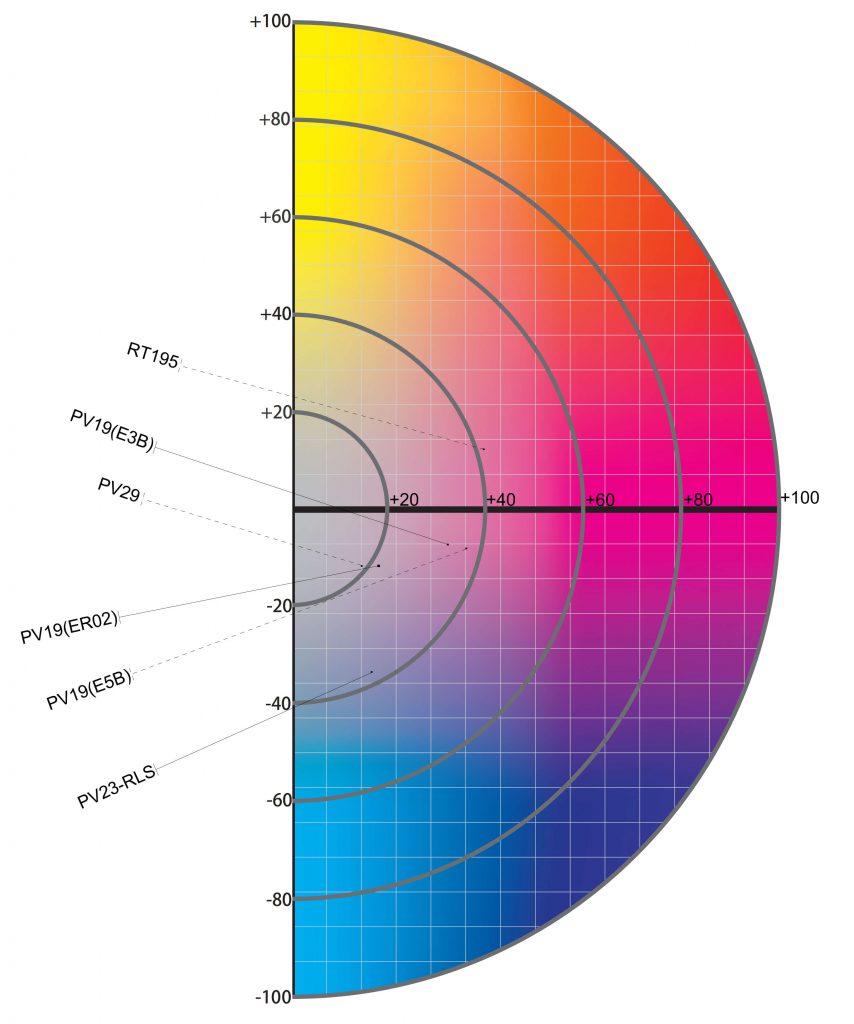

| 色相分布 |  |
Zeyachem is a global supplier of Dioxazine Violet pigments that provide a bluish violet shade, a color not obtainable by other pigments.
The extremely high color strength of Pigment violet 23 makes it a suitable pigment as a shading component. PV23 also exhibits excellent heat fastness and light fastness properties, making it suitable for inks and many paints and coatings applications.
Corimax Violet RLS is a reddish blue shade Dioxazine Violet (PV23) pigment with very high color strength and excellent overall fastness properties, suitable for inks, paints and coatings, including industrial coatings, powder coatings and automotive coatings.
特征：
low viscosity, high gloss, high color strength. Pigment Violet 23 is a transparent purple violet pigment with high saturation and tinting strength.
C.I.Pigment Violet 23 show good tinting strength in flexible PVC while poor resistance to immigration.
P.V.23 heat resistance above 230℃ in polyolefins, when used in transparent PS, temperature shall below 220℃, above this PV 23 shall decompose. When worked in polyester, it is 280℃ stable in 5 hours, while concentration shall above 0.05%.
The pigment is easy to use and requires no rinsing. To ensure maximum color intensity and proper adhesion to the pulp, a retention agent must be added to the pulp before the pigment is applied. Our pigments are supplied by volume sizes. The actual weight varies, depending upon the density of the pigment.
应用：
推荐用于汽车涂料，建筑涂料，卷材涂料，工业涂料，粉末涂料，印刷浆料，PVC，橡胶，PS，PP，PE，PU，胶印油墨，水性油墨，溶剂油墨，UV油墨。
Pigment Violet 23 (PV 23) has now been around for more than 55 years. Its beginnings go back to 1928, when a patent was filed for the pigment after researchers at the Hoechst company in Germany first undertook the multistage synthesis based on carbazole, an ingredient of coaltar, and chloranile. Until the end of World War II the pigment was only used to process diamine light blue, a direct dyestuff for cotton.
With the invention of reactive dyes, which considerably simplified the dyeing and printing process for cellulose fibers, this application lost its importance. A new and promising use for PV 23 was quickly found due to the pigment’s ability to produce unique colors.
PV 23 has been used as a pigment since 1953. PV 23 belongs to the group of high-performance polycyclic pigments (HPP’s) that are used whenever the requirements for a colorant are particularly high. These include high light fastness and weather fastness, fastness to solvents, and heat stability. In addition, PV 23 stands out by its high coloring power. Under the electron microscope, the crude violet shows a highly granular crystalline form, whereas the pigment particles are miniscule.
—————————————————————————————————————————————————— ————————————————
相关信息
物理和化学特性：
色相或指示灯：蓝紫色
相对密度：1.40-1.60
堆积密度/（lb / gal）：11.7-13.3
熔点/℃：430-455
平均粒径/μm：0.04-0.07
颗粒形状：立方/棒
比表面积/（m2 / g）：45-102
pH值/（10％浆料）：6.2
产品用途：颜料紫23主要用于涂料，油墨，橡胶和塑料的着色，也用于合成纤维的着色
有124种颜料的商业配方品牌。咔唑嗪是一种应用广泛而又不寻常的蓝紫色品种，单晶紫RN的比表面积为74m2 / g。它广泛应用于涂料，油墨印刷，塑料和织物印染等各个领域。着色时具有良好的清漆牢度。可用于风干漆，汽车漆OEM和烘焙漆，尤其是具有CuPc色粉和强色调的乳胶漆。它可用于塑料着色，在聚烯烃中的耐热性为280℃，并且保色性高（对于1 / 3SD的HDPE，仅需要颜料浓度的0.07％）；它也可用于聚酯和PE的着色。
综合原理： 以咔唑为原料，在相转化催化剂的存在下于常压下进行N-乙基化，并进行硝化反应和还原反应以合成2-氨基-N-乙基咔唑。使3,5,6-四氯对醌（氯腈）进行缩合和闭环反应，过滤，用水洗涤，干燥，得到粗制咔唑紫；最后，通过捏合或捏合得到CI颜料紫23，进行一般的着色处理。
别名：Pigment Violet RL; 51319; C.I. Pigment Violet 23; 8,18-Dichloro-5,15-diethyl-5,15-dihydrodiindolo(3,2-b:3',2'-m)tri- phenodioxazine; CI 51319; Diindolo(3,2-b:3',2'-m-)triphenodioxazine, 8,18-dichloro-5,15-diethyl-5,15-dihydro-; Carbazole Dioxazine Violet; Carbazole Violet; Chromofine Violet RE; Cyanadur Violet; Dioxazine Violet; Dioxazine purple; EB Violet 4B7906; EMC Violet RL 10; Fastogen Super Violet RN; Fastogen Super Violet RN-S; Fastogen Super Violet RTS; Fastogen Super Violet RVS; Helio Fast Violet BN; Heliofast Red Violet EE; Heliogen Violet; Heliogen Violet R Toner; Hostaperm Violet RL; Hostaperm Violet RL Special; Hostaperm Violet RL Special 14-4007; Lake Fast Violet RL; Lake Fast Violet RLB; Lionogen Violet R 6100; Lionogen Violet RL; Lionol Violet HR; Monolite Fast Violet R; PV Fast Violet BL; PV Fast Violet RL-SPE; Paliogen Violet 5890; Paliogen Violet L 5890; Permanent Violet; Permanent Violet R; Sandorin Violet BL; Sanyo Permanent Violet BL-D 422; Sumikacoat Fast Violet RSB; Sumitone Fast Violet RL; Sumitone Fast Violet RL 4R; Sumitone Fast Violet RLS; Symuler Fast Violet BBL; Symuler Fast Violet BBLN; Unisperse Violet B-E; Vynamon Violet 2B; 8,18-Dichloro-5,15-diethyl-5,15-dihydrodiindolo(3,2-b:3',2'-m)triphenodioxazine; Diindolo(3,2-b:3',2'-m)triphenodioxazine, 8,18-dichloro-5,15-diethyl-5,15-dihydro-; 8,18-dichloro-5,15-diethyl-5,15-dihydrocarbazolo[3',2':5,6][1,4]oxazino[2,3-b]indolo[2,3-i] phenoxazine
分子结构：
